How to Use the Free 3D Metal Building Builder: Design Your Own Step-by-Step (2026)

What Is the Free 3D Metal Building Builder?

The 3D Builder is an online design tool that lets you build any custom metal building visually, from the first dimension to the final color choice, without talking to a sales rep. You click through size, style, and features, see the building render in real time, and submit the finished design to receive a custom quote. The entire tool is free, requires no account, and takes about 5 to 10 minutes for most designs.

The tool is useful for three types of users: homeowners who know what they want but can’t easily describe it in words, buyers comparing multiple designs before deciding, and shoppers who want a visual to show family or a contractor before committing. Instead of a pencil sketch or a verbal description, you get a 3D rendering that matches exactly what will be delivered and installed.

What can you design in the 3D Builder?

How Do You Start a New Design in the 3D Builder?

You start by entering your delivery ZIP code. This single step tells the builder which local building codes apply — wind rating, snow load, seismic zone — and whether you need concrete, mobile home, or asphalt anchors. The default building that loads is a 20 x 20 x 12 ft carport, which you then customize from there.

Why the ZIP code matters

The ZIP code is not just for shipping. It locks in three critical engineering decisions behind the scenes:

• Wind rating: coastal areas need higher wind ratings (sometimes 140+ mph), inland areas can use standard 110 mph
• Snow load: northern regions need stronger roof framing to carry 30-70 lbs per sq ft; southern regions can use lighter framing
• Seismic zone: California, Oregon, Washington, and parts of other states require special anchor and bracing specifications

These three factors change which configurations are available in later steps. A 60 ft wide building might be available in Texas but limited to 50 ft in a high-snow-load Michigan county. The builder handles this automatically — you just enter the ZIP.

What Sizes Can You Design in the 3D Builder?

The 3D Builder supports any custom size within these limits: width from 12 ft to 60 ft (in 1 ft increments), length from 20 ft to 150 ft (in 5 ft increments), and height from 6 ft to 16 ft (in 1 ft increments). These ranges cover every residential carport, garage, workshop, barn, and RV cover, plus most light commercial structures.

3D Builder size limits and increments

For help picking the right starting size for your use case, see our complete carport sizes guide — it covers 1-car, 2-car, 3-car, RV, and workshop sizing with vehicle lookup tables.

What Styles and Roof Options Does the 3D Builder Offer?

The 3D Builder offers three roof styles, four side configurations, and both horizontal and vertical panel orientations. Each combination serves a different climate and use case, and the right choice affects snow load capacity, wind rating, and final appearance.

Available roof styles

Available side configurations

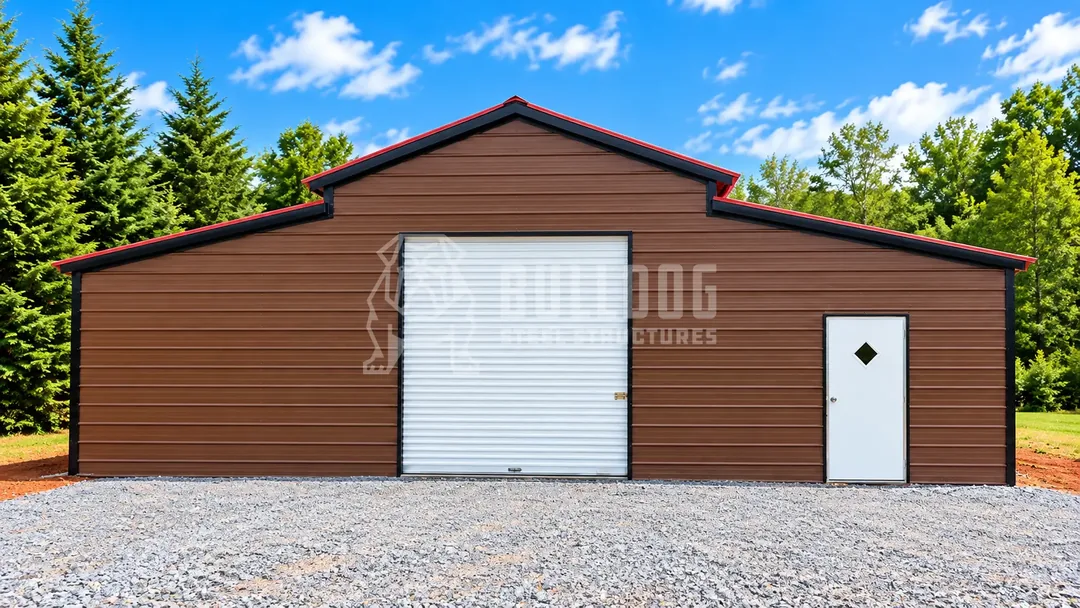

For snow-prone regions, A-Frame Vertical is almost always the right call — snow slides off the vertical panels much faster than horizontal or rounded roofs. See our types of anchors guide for how roof style affects anchoring requirements in high-wind and high-snow areas.

What Customization Options Can You Add in the 3D Builder?

Beyond size and roof style, the 3D Builder lets you add doors, windows, insulation, color options, lean-tos, and gable upgrades. Each addition shows up instantly in the 3D render, so you can see exactly how the final building will look before you submit the design.

Available customizations by category

For color combination ideas, see our metal building color ideas guide. For understanding what insulation level you need, our insulated vs non-insulated comparison walks through climate-based recommendations.

How Do You Submit Your 3D Design for a Quote?

Once your design is complete, click Submit for a Quote. You’ll enter basic contact info (name, email, phone, delivery address) and the design file is sent to the Bulldog Steel Structures quote team. There is no credit card, no deposit, and no obligation to buy — you receive a detailed quote within 24-48 business hours, and you decide from there.

What happens after you submit

What Should You Know Before You Start Designing?

Three things speed up the design process and lead to a more accurate quote: knowing your approximate size, measuring your site, and understanding your anchor base. Spending 10 minutes on these before opening the 3D Builder saves significant back-and-forth.

1. Pick a starting size that matches your use case

Most owners regret going too small, not too big. Look at the vehicles, equipment, or livestock you plan to shelter, add 2-4 ft of clearance for walking space, and start with that size. For sizing help by use case, see our complete standard carport sizes chart with dimensions.

2. Measure your installation site

Measure the available space on all four sides, note any slope, and check overhead clearance for trees or power lines. Delivery trucks need about 10 ft of width to reach the install site. If your lot is tight or you have overhead obstructions, note that when submitting — it affects delivery logistics.

3. Know your anchor base

Metal buildings anchor into concrete, soil, gravel, or asphalt — and the anchor type changes the installation. If you don’t already know what base you’ll be installing on, see our types of anchors guide for a decision tree. The 3D Builder will default to a reasonable choice based on your ZIP, but confirming it up front saves one round-trip with the quote team.

Also read: Different Types of Anchors for Metal Buildings: A 2026 Complete Guide

4. Plan for one future upgrade

The second most common regret is not planning for future needs. If you might add a second vehicle, a lean-to for extra storage, or a workshop corner later, build those into the initial design or at least size the main structure to make additions possible. Adding a lean-to to an existing metal building is possible but costs more than including it on day one.

Frequently Asked Questions About the 3D Metal Building Builder

Is the 3D Builder really free?

Yes. The Metal Building 3D Estimator is 100% free to use. There is no account requirement, no credit card, no deposit, and no obligation to buy. You can design as many buildings as you want, submit multiple designs for comparison quotes, and only commit anything when you accept a final quote and schedule delivery.

Do I need to create an account to use the 3D Builder?

No account is needed to design a building. You only enter contact information at the final submit-for-quote step so the quote team can send your custom quote by email and follow up. If you want to save a design to come back to later, you can submit it as a quote request and the design is kept on file against your email.

Can I save my design and come back to it later?

Yes. The simplest way to save a design is to submit it as a quote request — the design is stored against your email and the quote team can pull it up anytime you want to make changes. For in-progress designs, your browser will typically keep the state if you don’t close the tab, but there is no permanent save-as-draft feature right now.

Does the 3D Builder give me a price estimate?

The 3D Builder itself does not show live pricing — pricing depends on your ZIP code, the current steel market, and specific engineering requirements (wind rating, snow load, anchor type), which are reviewed by the quote team. A detailed written quote with itemized pricing is sent back within 24-48 business hours of submitting your design.

Can I design a custom size that isn’t in the dropdown?

Yes. Width goes up in 1 ft increments from 12 ft to 60 ft, length goes up in 5 ft increments from 20 ft to 150 ft, and height goes up in 1 ft increments from 6 ft to 16 ft. Any combination within those ranges is available. For truly non-standard sizes outside those ranges, submit a quote request with notes and the engineering team can advise on custom options.

How accurate is the 3D rendering compared to the real building?

The 3D rendering is engineering-accurate — the dimensions, panel layout, door positions, and color are exactly what will be fabricated and installed. The render is not photorealistic (lighting and texture are simplified for performance), but every structural and visible feature matches the final building.

Can I pay off my rent-to-own metal carports early?

Yes. Early payoff is allowed on most rent-to-own metal carport contracts, and it saves you money on remaining rental payments. There is typically no prepayment penalty, though the exact savings depend on your contract terms. If you expect your financial situation to improve during the contract (bonus, tax refund, inheritance), early payoff is one of the biggest advantages of rent-to-own.

Can I rent-to-own a metal building with no credit check?

Yes. Most metal building rent-to-own programs do not require a credit check. Approval is based on your ability to make the initial payment and verify your identity and installation address. This makes rent-to-own one of the most accessible ways to acquire a metal building, especially for buyers with limited credit history, past credit issues, or who prefer not to run a hard credit inquiry.

Can I use the 3D Builder on a mobile phone?

Yes. The 3D Builder works on phones, tablets, and desktops. On a phone, the full rotation of the 3D view uses swipe gestures. The design experience is smoother on a tablet or desktop because of the larger screen, but all features work on mobile.

The Bottom Line

The 3D Builder removes the biggest friction point in buying a metal building — not knowing exactly what you want or how to describe it. By designing the building visually before talking to anyone, you arrive at the quote stage with a specific design and a clear idea of what you want. That saves hours of back-and-forth, prevents costly misunderstandings during installation, and lets you compare options side by side before committing.

The tool is free, takes about 5 to 10 minutes for a first design, and produces a detailed custom quote within 24-48 business hours. For sizing help before you start, see our metal carports size chart. For foundation questions, see the types of anchors guide. For long-term care once your building is up, see the carport maintenance guide.

Ready to start? Open the 3D Builder, enter your ZIP code, and begin designing. If you have questions during the design process, call 888-551-2156 and a specialist can walk you through it.
